An analysis of hydrophobic fabric using electron microscopy
| Atomic Force Microscopy (AFM) |
| A single thread of the hydrophobic t-shirt was mounted on a stub and placed inside the NTMDT AFM for atomic force microscopy. The biggest challenge faced while imaging with AFM was in landing the tip on a fiber so as to not capture the transition of the tip from one fiber to the other. The set point was kept at a high value of 8 and imaging was carried out at a low gain of 0.1. A scan rate of 0.1 over a small area of 5µm x 5µm provided good results. |

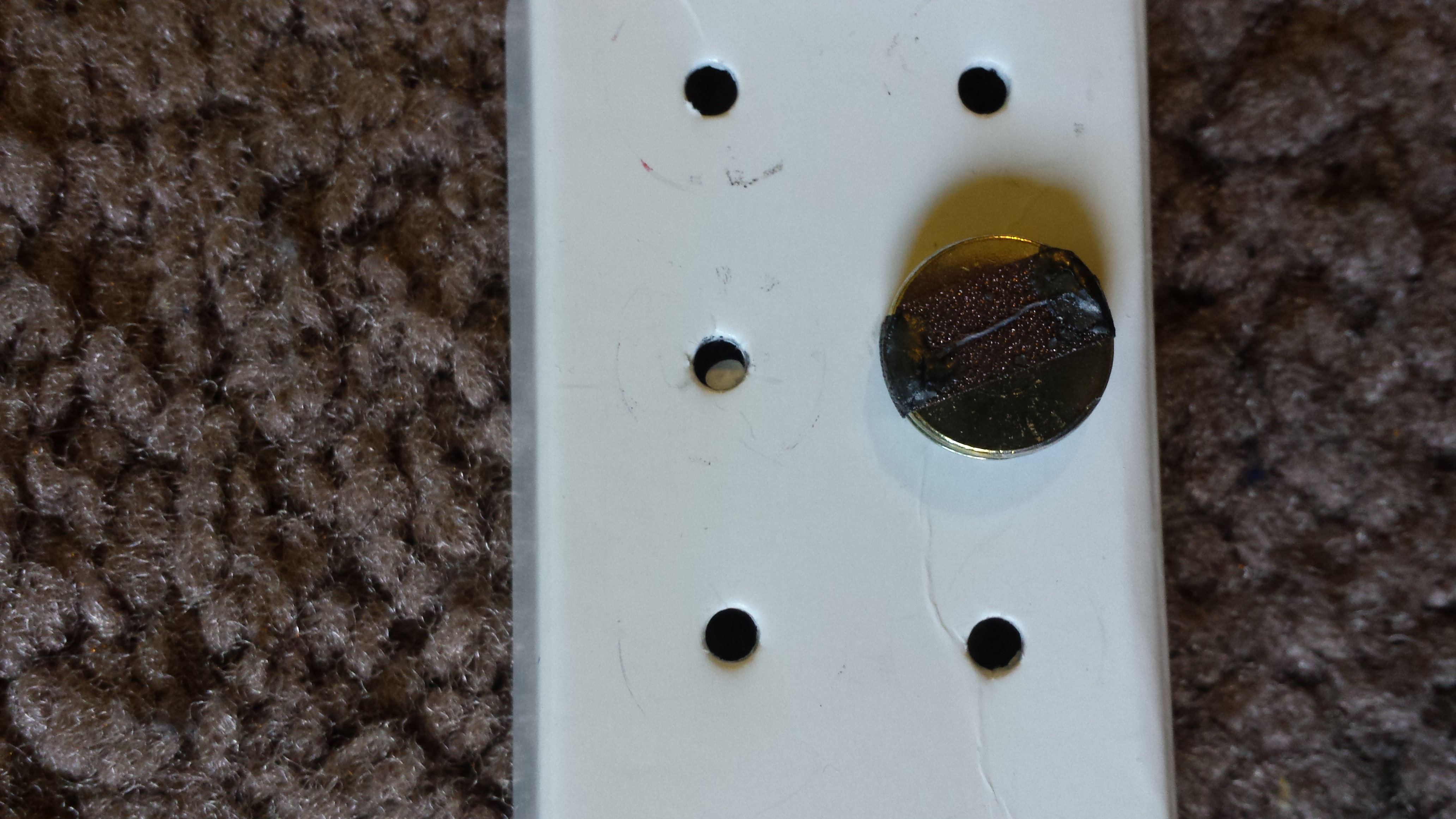

 Figure 5.1 The AFM sample consisting of a single thread of the hydrophobic t-shirt |

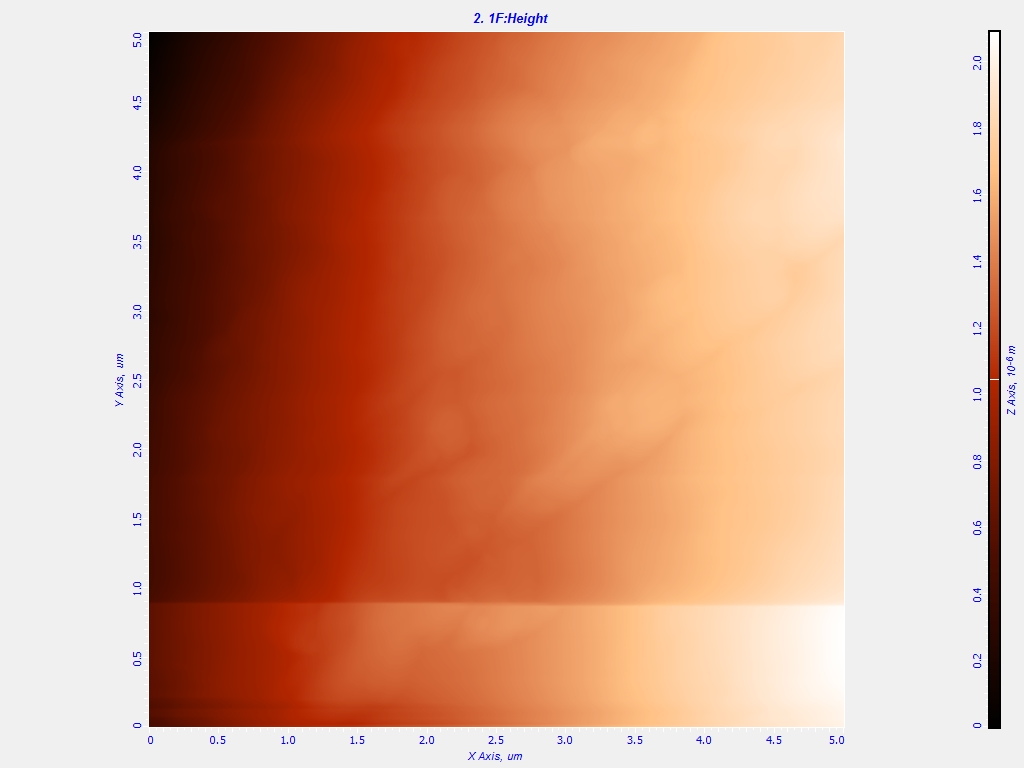

 Figure 5.2 A 2D AFM scan of a 5x5 micron area of the sample |

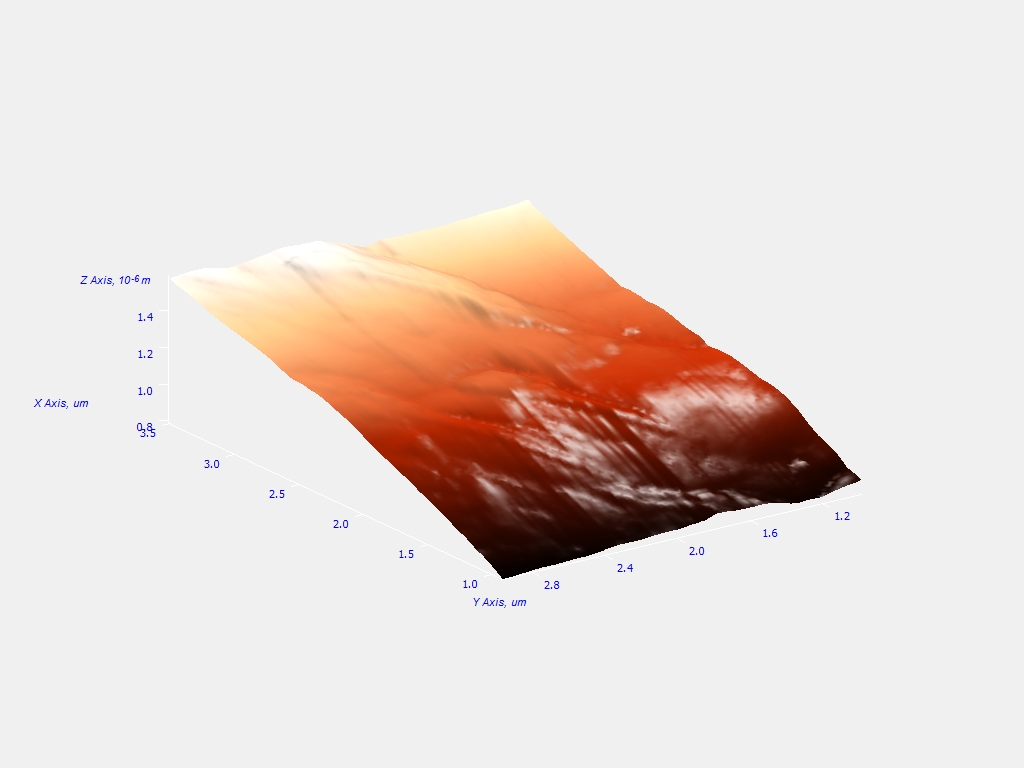

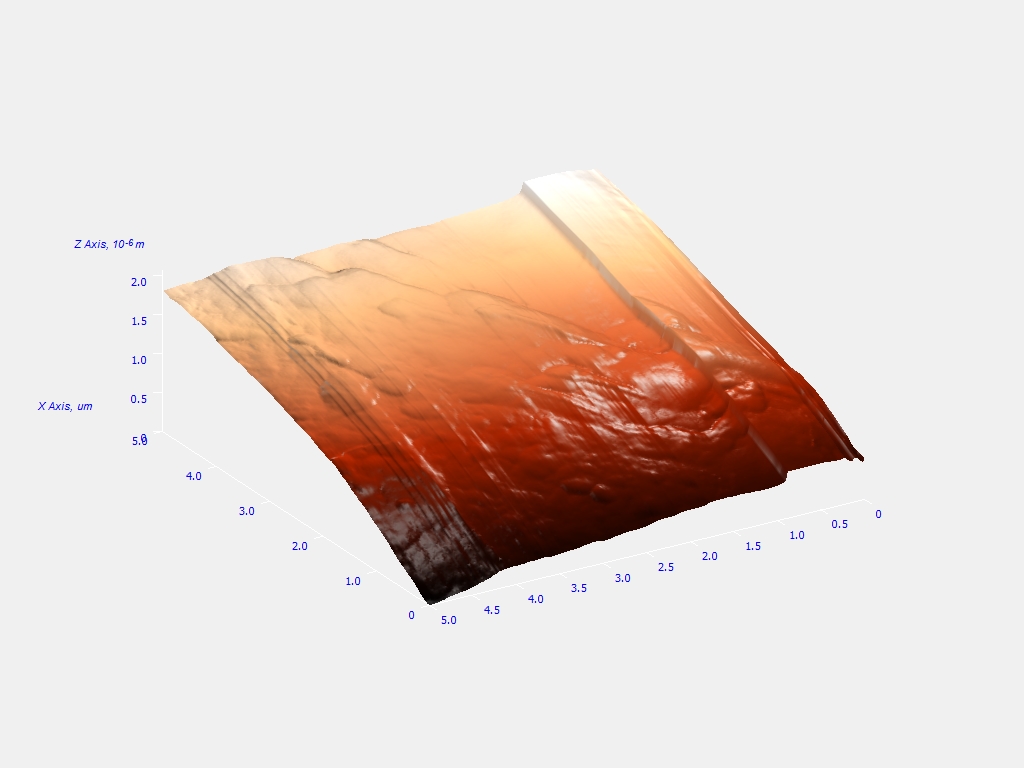

 Figure 5.3 A 3D AFM scan of a 5x5 micron area of the sample |
|

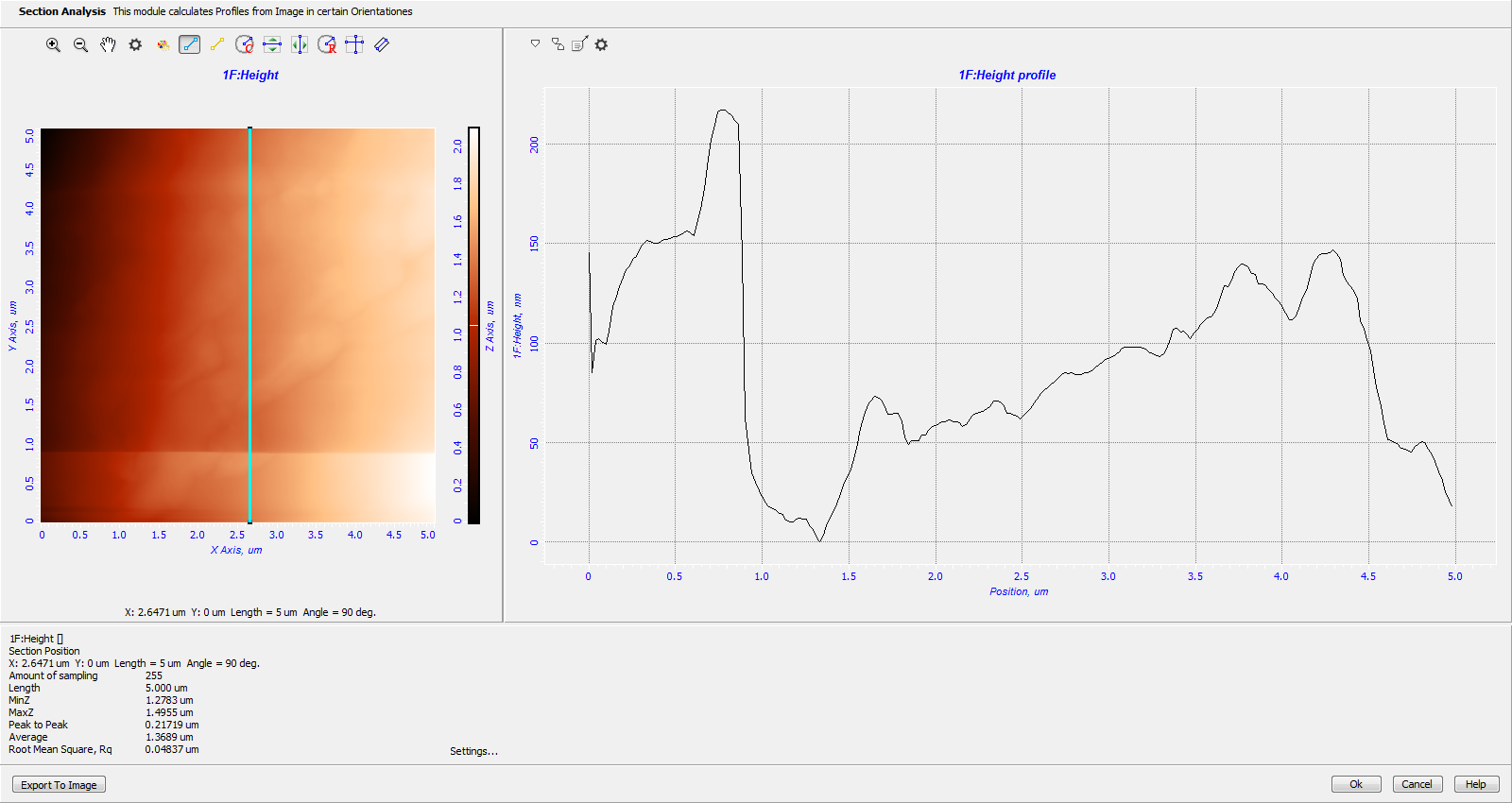

Figure 5.4 Sectional Analysis
of the topography of the sample reveals no nanostructures on the surface |
 Figure 5.5 Sectional Analysis of the topography of the sample along the y-axis. |
|
|
